Description

Products that can use this harness
* Orion Coil Drivers

History

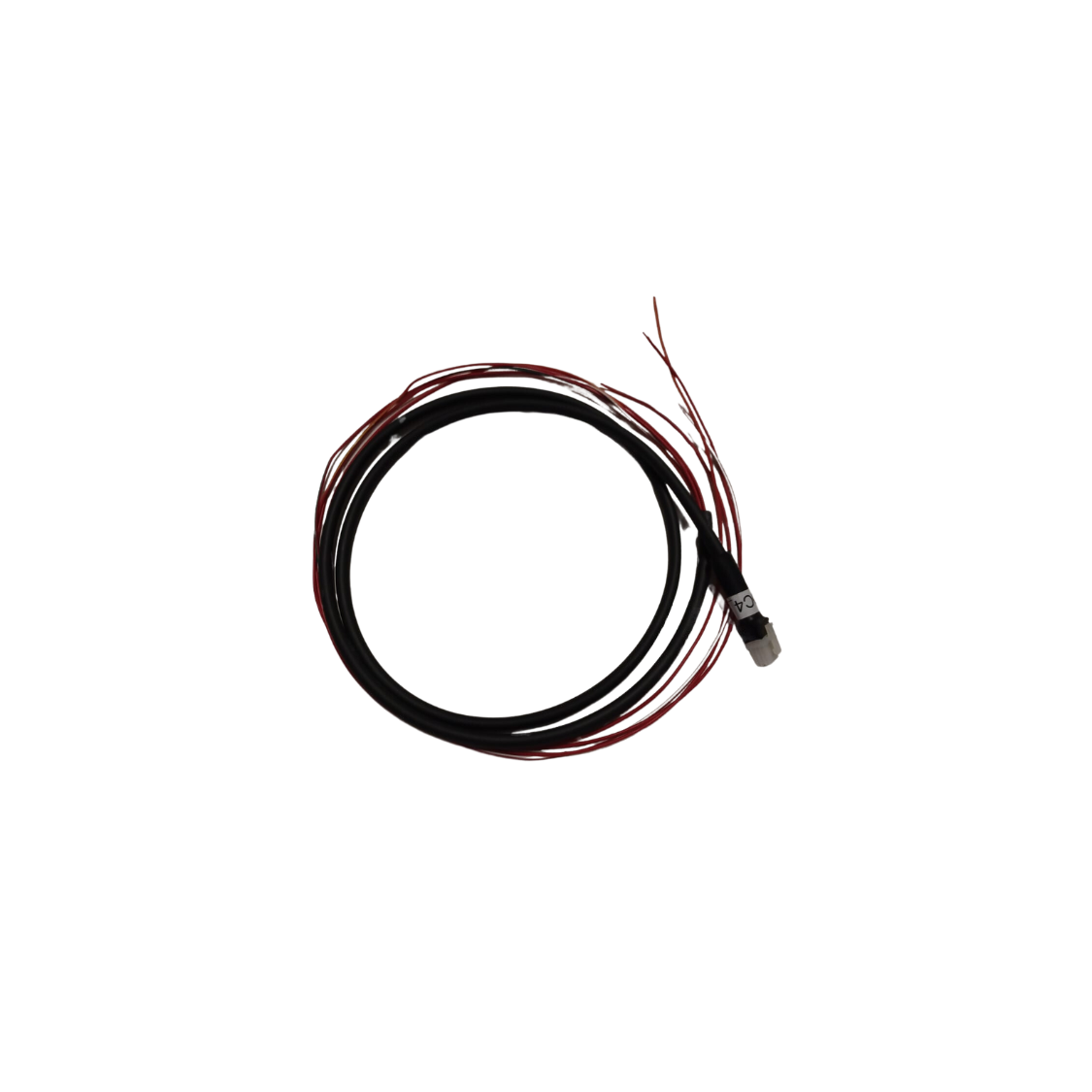

* This Level 1 harness was made for the 2 Way Orion Coil driver. It will connect 2 basic coils to the high voltage drivers.

Design Points to take Notice of.
* This harness has 2 High Voltage Negative drivers used for basic Coils without built in drivers.
* Output Wire Colours are the same as the Input wire colours from the Mercury3 or Orion2 harnesses. This may be confusing to the standard Striped Black wires from other systems. But we tried to keep the input and output the same to minimise confusion.

Wire Names and connections on this harness:
2x Negative outputs (Striped Red)
See the design drawing for thickness and lengths or wires. See the connection drawings in the
specific product manual on how to connect the harness to each item it was designed for.

NB! Wires that are not connected must be isolated to prevent shorts or interference.

Download the OC2_P2 Coil Driver Harness 2-Way Drawing PDF

Go to this in the Online Manuals section.
