Description
Products that can use this harness
- Venus3, Venus2, Orion2, Orion, Saturn, Pluto

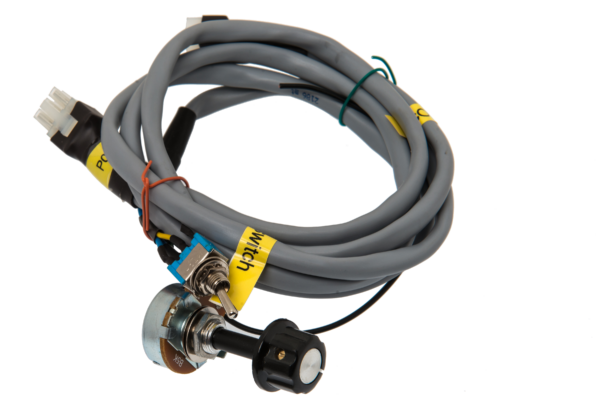

This old style Level 1 harness is part of the easy install series Output harnesses. See the GP Priority layout for the correct wire colours. The harness contains ECU connections from the Comms. Connector for Dual Map and Tuning Pot feature.
Click here to download the PDF version of P05 – Comms. Pot Switch Input Harness Drawing.
Click here to download the PDF version of P05 – Comms. Pot Switch Harness Overview.
Overview
Products that can use this harness
• Venus3, Venus2, Orion2, Orion, Saturn, Pluto
History
• This old style Level 1 harness is part of the easy install series Output harnesses. See the GP Priority layout for the correct wire colours.
• The harness contains ECU connections from the Comms Connector for
Dual Map and Tuning Pot feature.
Design Points to take Notice of.
• This harness is a piggyback system where the coms connector is extended so that the dual map switch and the tuning pot could be connected and the tuning software can still connect to the ECU.
• The buttons wire is shielded and share a common earth wire. You may connect any style switch or 5K potentiometer.
Wire Names and connections on this harness:
Pot/P Switch (Shielded)
• Earth (Blue)
• 5 Volt (Red)
• Pot Signal or Wiper (Green)
• Dual Map Switch (Yellow)
Screens are not connected
See the design drawing for thickness and lengths or wires. See the connection drawings in the specific product manual on how to connect the harness to each item it was designed for.
NB! Wires that are not connected must be isolated to prevent shorts or interference.
