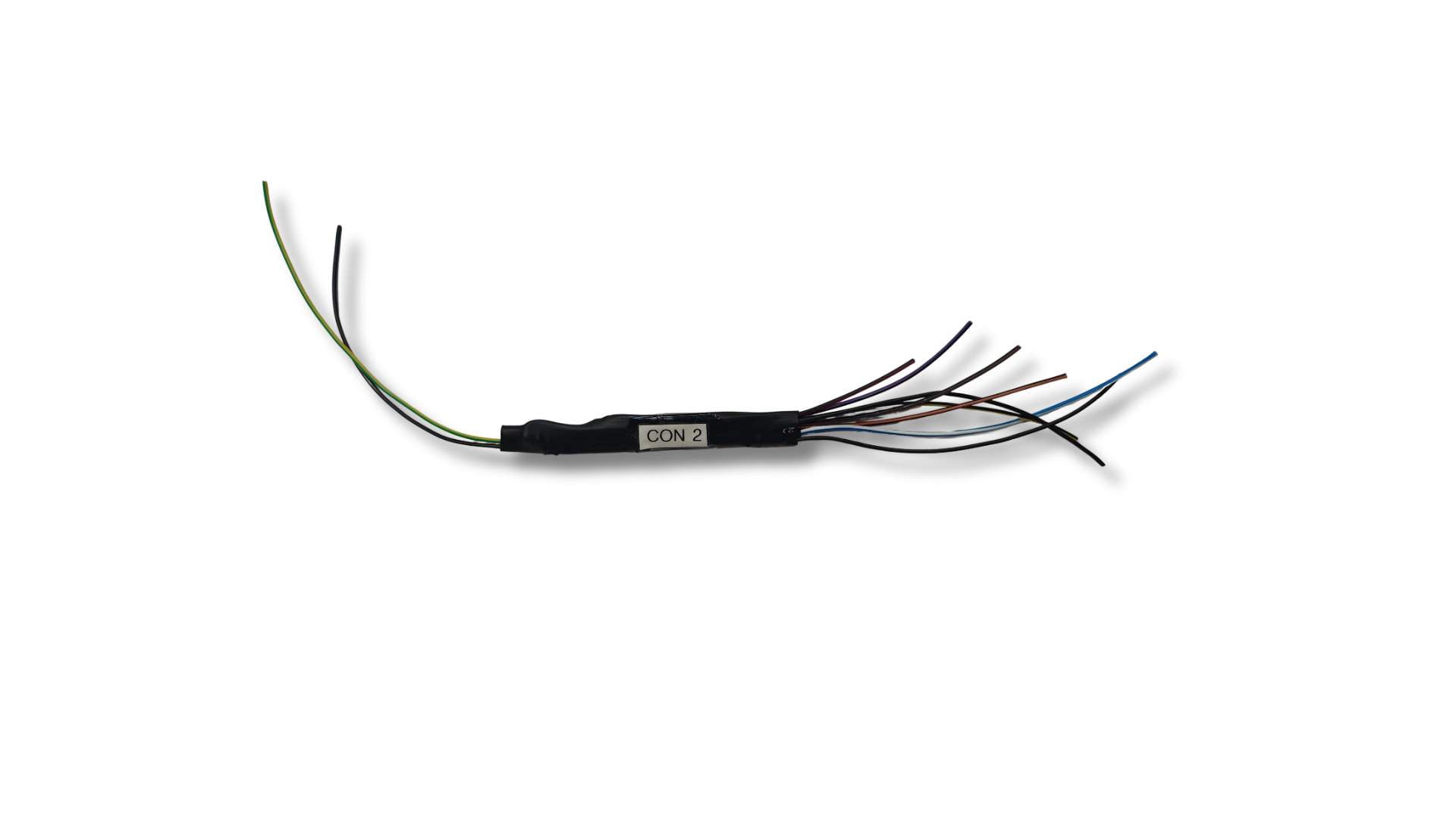

Interface multi-position gearbox selector signals with the CON2 Serial Digital-to-Analogue Converter Board.

The CON2 is designed to connect gearbox selector input wiring to a Spitronics Transmission Control Unit (TCU). Its circuit uses a resistor ladder network to combine the selector inputs into a single output at the GREEN-IN connection.

The wiring diagram identifies gearbox selector positions including Park, Reverse, Neutral, Drive and the numbered gear positions. The board provides a dedicated connection arrangement for these inputs, along with ground and start connections.

This provides a defined interface between the gearbox selector wiring and the transmission controller.

Key Features

• Designed for multi-position gearbox selector input wiring.
• Uses a resistor ladder network to combine selector signals.
• Provides a single signal output for the TCU.
• Includes dedicated ground and start connections.
• Incorporates filtering capacitors as shown in the circuit schematic.
• Supplied with a documented wiring layout for installation reference.
